Unleashing the Power of IPQ4019/IPQ4029 WIFI5: Industrial-Grade Chipsets, High-Power Radio Modules, and Advanced Features
The IPQ4019 was the industry's first single-chip Wi-Fi system-on-chip (SoC) to bring Wave-2 802.11ac features to a variety of home and enterprise networking products. The highly-integrated, single-chip design combines dual-band 11ac, advanced Wi-Fi features and network processing in a variety of configurations for high-performance, power-efficient and cost-effective network infrastructure products.
The IPQ4019 is an ultra low power SoC with integrated RF transceiver that supports both AC and DC link rates for high speed data transfers between client devices and access points. It also includes a sophisticated antenna control block with automatic gain control (AGC), multi antenna selection for diversity reception, adaptive antenna array pattern matching for multipath mitigation, transmit diversity support, and enhanced isolation mode with multiple failover algorithms.
The IPQ4019 is ideally suited for applications such as enterprise WLANs, residential gateways, industrial automation networks, video surveillance systems and other embedded solutions where low power consumption is critical.

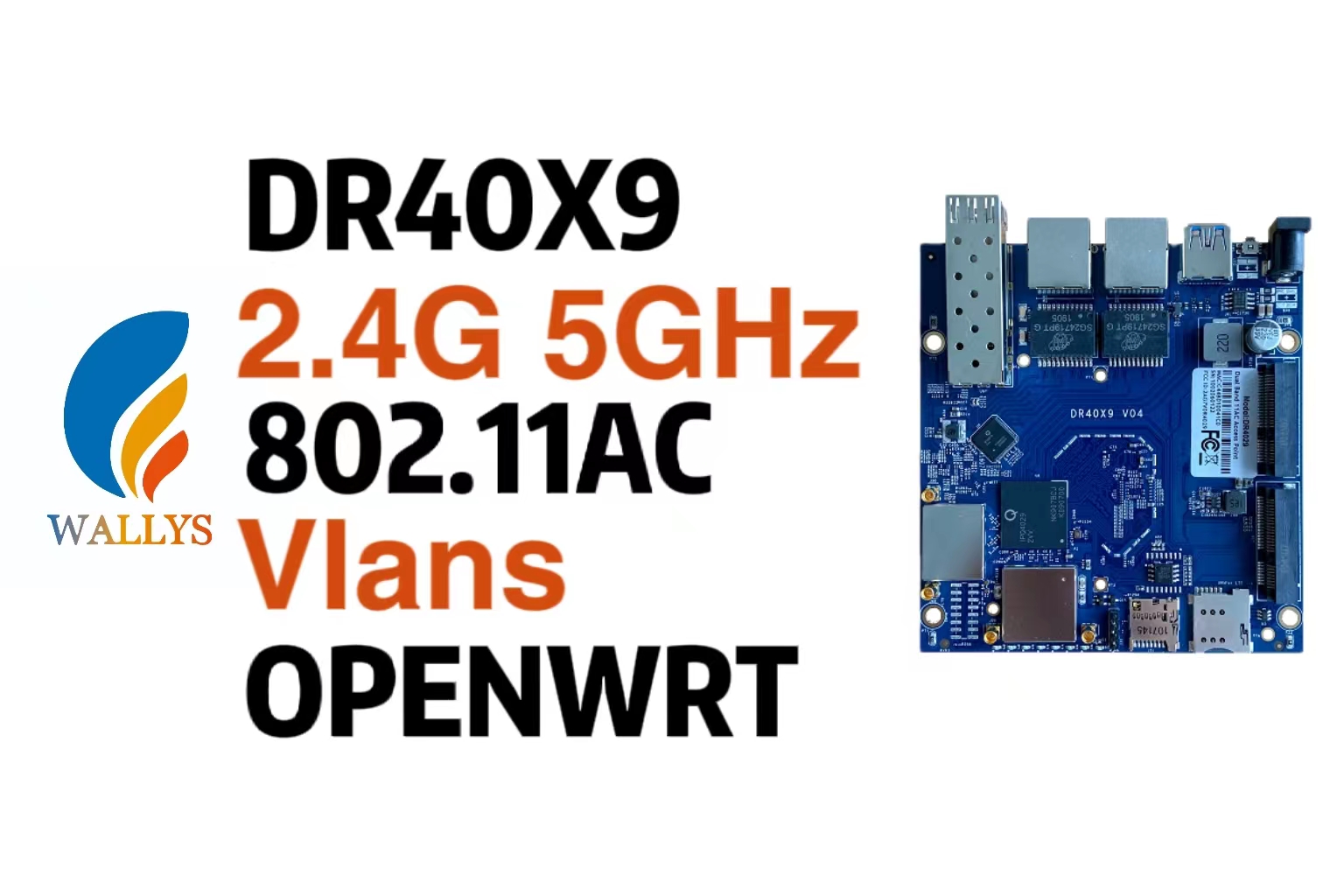

DR40x9 is a IPQ4019/IPQ4029 chipset-based solution boasts industrial-grade performance, seamlessly integrated with 2x 5G high-power radio modules and 2×2.4G high-power radio modules. It supports a wide frequency range of 4.940GHz to 5.825GHz for 5G and 2.400GHz to 2.482GHz for 2.4G, ensuring versatile connectivity options. With 2 x 5G MMCX connectors and 2×2.4G MMCX connectors, it enables secure and efficient antenna connections. The solution supports bandwidths of 5MHz, 10MHz, 20MHz, 40MHz, and 80MHz, catering to various network requirements. Additionally, it provides support for 11ABGN/AC standards and fixed data rates, ensuring compatibility with diverse devices. Its RoHS compliance guarantees the protection of human health and the environment. Our firmware is compatible with all Quectel modules, and the solution offers support for Openwifi, QSDK, and Openwrt, empowering users with enhanced functionality and customization options.
For more information about DR40X9,you can click the link below or email us.
Wallys Communications (Suzhou ) Co., LTD is mainly engaged in the research and development and production of wireless communication products,such as Routerboard,Network Card,Industrial Wireless AP,Antenna etc.OEM/ODM/JDM services for customers supported.
With our experienced R&D engineer team,which with a demonstrated history of working in the wireless industry,you can explore the project with RF and embedded communications,network protocol,firmware,openwrt,linux system,development,analog and Digital Circuit Design,Network Processors,Power supplies,PCB design and layout with us.
Welcome to email us for more information.
