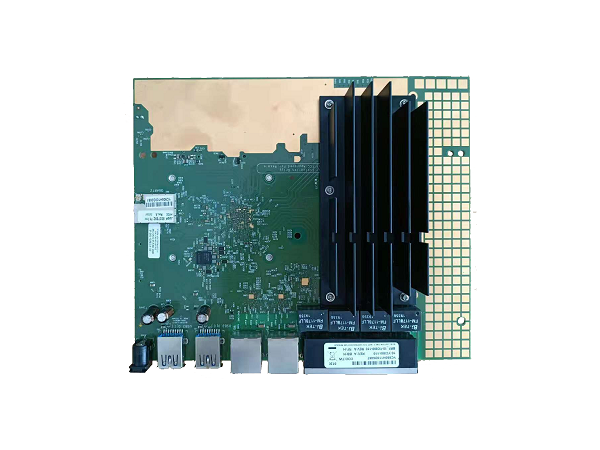

DR8072A(HK09)
Features
-
Qualcomm Atheros IPQ8072A AR Quad Core CPU
-
On-board 5GHz radio, up to 2475 Mbps physical data rate 8 MB NOR Flash, 256MB NAND Flash
-
On-board 2.4GHz radio, up to 1147Mbps physical data rate
-
Support 802.11ac TX Beamforming
-
Support 802.11ac/802.11ax MU-MIMO DL and UL
-
Support OFDMA DL and UL
-
Tri-band support with 5G SBS (4×4/5GHz ) + 4×4/2.4GHz
-
Supports Dynamic Frequency Selection (DFS)
Hardware Specifications
| Symbol |
Parameter |
| CPU | Qualcomm Atheros Quad Core ARM Cortex 64-bit A53 Processor IPQ8072A 2.2GHz CPU |
|
CPU Frequency |
Derived from Qualcomm Atheros AP.HK09 |
| System Memory | 1x 512MB, DDR4 2400MHz 16-bit interface |
|
Frequency Range |
2.412~2.472GHz, 5.150~5.825GHz |
|
MiniPCIe Slot |
1x MiniPCIe Slot with PCIe 3.0 |
|
Modulation Technique |
OFDMA: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
|
Environmental Temperature |
Operating: -20ºC to 70ºC, Storage: -40ºC to 90ºC |
| Flash |
NOR Flash: 8 MB NAND Flash: 256MB |
|
Wireless |
On-board 4×4 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 17dBm per chain On-board 4×4 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 17dBm per chain 8x U.FL Connectors |
Absolute Maximum Rating
| Parameter |
Rating |
Unit |
|
Operating Temperature Range |
-20 to +70 |
ºC |
|
Storage Temperature Range |
-40 to +90 |
ºC |
| Operating Humidity Range | 5 to +95 (non-condensing) |
% |
| Storage Humidity Range |
0 to +90 (non-condensing) |
% |
