IPQ6010 Custom Industrial AP: Factory & Warehouse Use Case

Industrial environments demand wireless access points (APs) that combine high performance, low latency, and rock‑solid reliability under harsh conditions. The Qualcomm IPQ6010, part of the Networking Pro 400 platform, delivers all of these in a compact, cost‑effective SoC that’s ideally suited for custom industrial AP designs.

Why IPQ6010 for Industrial APs?

The IPQ6010 SoC integrates a quad‑core ARM Cortex‑A53 CPU (up to 1.8 GHz) with a full suite of Wi‑Fi 6 features:

• 4 spatial streams across 2.4 GHz and 5 GHz, supporting OFDMA and MU‑MIMO for simultaneous servicing of hundreds of devices.

• Advanced multi‑user scheduling and deep packet buffering, ensuring deterministic throughput in densely populated RF environments.

• Hardware offload engines for encryption (WPA3, AES‑GCMP) and packet processing, freeing CPU cycles for application logic.

These capabilities make the IPQ6010 a strong foundation for APs serving automated guided vehicles (AGVs), barcode scanners, surveillance cameras, and IoT sensors — common in both factories and warehouses.

Custom Hardware Integration

A typical IPQ6010‑based industrial AP leverages the following hardware building blocks:

1. SoC Module: IPQ6010 FCBGA package mounted on a carrier board with 1 GB DDR3L memory and at least 32 MB NOR + 256 MB NAND flash for firmware.

2. Ethernet & PoE: One or two GbE ports plus a 2.5 GbE uplink; support for passive PoE (24–48 V) or 802.3bt active PoE simplifies deployment without external power supplies .

3. Wireless Front‑End: On‑board 2×2 radios deliver up to 573 Mbps on 2.4 GHz and 1.2 Gbps on 5 GHz; optional M.2 “E Key” socket enables future expansion to Wi‑Fi 6E or 7 modules Wallys Communications.

4. Industrial Interfaces: SFP slot for fiber uplink, USB 2.0 for local management, and serial console header for field diagnostics.

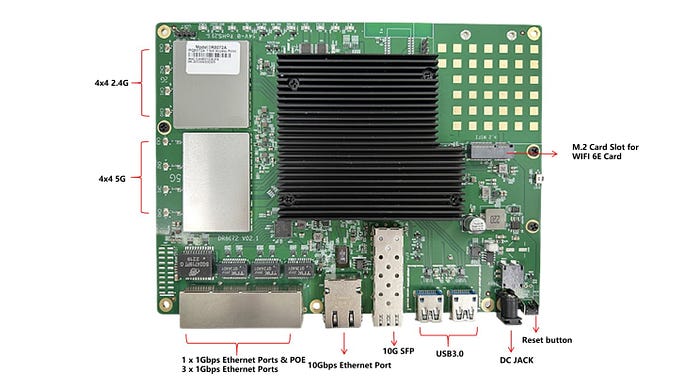

Wallys Industrial Design

This flexible hardware platform lets integrators tailor the AP’s connectivity, storage, and management interfaces to specific factory or warehouse workflows.

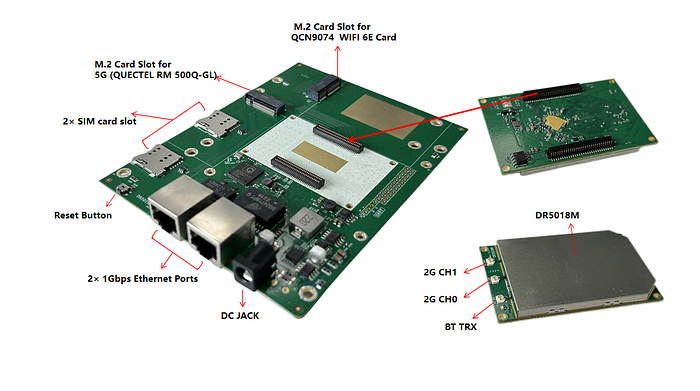

Wallys Industrial Design

Factory Deployment Use Case

Challenge

Modern factories feature hundreds of Wi‑Fi 6 devices — wireless sensors, AGVs, cameras — often moving at high speed or located in RF‑challenging areas (metal racks, machinery).

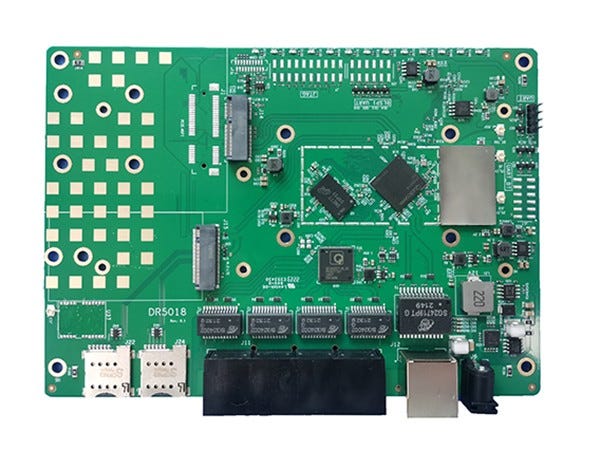

Wallys Industrial Design

Solution

• OFDMA & MU‑MIMO coordinate hundreds of low‑bandwidth sensors alongside high‑throughput devices like HD cameras without mutual interference.

• Deep packet buffering maintains consistent uplink performance even during RF congestion peaks (e.g., shift changes).

• Deterministic scheduling ensures time‑sensitive control traffic (e.g., PLC commands) meets strict latency requirements.

By distributing multiple IPQ6010 APs across the production floor and linking them via PoE‑powered 2.5 GbE uplinks, factories achieve seamless, low‑latency coverage with centralized management.

查看内容凭证

Warehouse Deployment Use Case

Challenge

Warehouses rely on real‑time inventory tracking, voice‑picking headsets, and handheld scanners often operating at great heights and amid reflective racking.

Solution

• High‑gain antennas on IPQ6010 APs extend coverage to mezzanine levels, reducing the AP count needed per aisle.

• Adaptive beamforming focuses RF energy toward clients, boosting link margin under heavy multipath conditions.

• Enterprise security (WPA3, AES‑GCMP) protects sensitive inventory and order‑picking data in transit.

Integrators can mount ruggedized IPQ6010 APs under ceilings or on racking, powered via PoE, to create a resilient mesh that supports thousands of mobile scans per hour without dropouts.

Key Deployment Considerations

1. Temperature & Humidity: Industrial‑grade carrier boards rated –40 °C to +70 °C, 5–95% non‑condensing humidity ensure reliability in cold storage or humid loading docks.

2. EMI/EMC Compliance: Shielding and PCB layout must meet CE/FCC industrial emissions standards to avoid interfering with sensitive machinery.

3. Firmware & Management: Utilize Qualcomm’s QCA Open Source SDK (QSDK) for custom feature development and remote firmware upgrades via secure management protocols.

Conclusion

The Qualcomm IPQ6010, paired with a purpose‑built industrial carrier board, delivers a future‑proof Wi‑Fi 6 solution for both factory automation and warehouse logistics. Its combination of robust SoC performance, advanced multi‑user features, and industrial‑grade hardware integration enables seamless, secure, and scalable wireless networks that keep production lines and fulfillment centers running smoothly.
