QCN90X4 QCN9074 QCN9024 Dual Band Single band wifi module 802.11ax/Wallys DR9074 series
Qualcomm QCN9024 has more than 2.4GHz, 5GHz and 6GHz versions. Support 160MHz bandwidth and 4 MHz bandwidth under Wi Fi 6 at 5GHz ,Simultaneous opening of 4MU-MIMO and 4K-QAM modulation technology.
Qualcomm QCN9074 Industrial Wireless Network Card, M Two interfaces, four antennas, support 160MHz and 4KQAM, and the peak value is 4949Mbp. The peak value of a single frequency exceeds that of many Wi Fi 6 routers
After the DR9074E newly launched recently,now wallys 9074 family has 4 products:
1.DR9074E
WIFI6 and WiFi6E 4×4 MU-MIMO QCN90X4 Dual Band WiFi Module
QCN9074,QCN9024,11AX,4X4 6G,MINI PCIE WIFI MODULE
This card based on Qualcomm Atheros QCN90x4 chip,max Tx power 20dBm per chain,data rate up to 4949Mbps,and for the interface,it equipped with the PCI Express 3.0 interface,for this network card,Wallys technology designed MiniPCIe connector for it,support 5.180~5.825Ghz or 5.925GHz-7.125GHz or5.180GHz- 7.125GHz.
|
Version |
Feature |
|
DR9074E-5G |
Support 5.180GHz ~5.825Ghz |
|
DR9074E-6E |
Support 5.925GHz-7.125GHz |
|
DR9074E |
Support 5.180GHz- 7.125GHz |
2.DR9074-6E
QCN9074,802.11AX,4X4,MU-MIMO,6GHz,WIFI6E,M.2
This card with Qualcomm Atheros QCN9074,can provide 6GHz, max 23dBm per chain, up to 4949Mbps,with the interface M.2 E Key and PCI Express 3.0,with 4 spatial streams(4SS),with single band 6GHz 4×4 wifi 6E (802.11ax) functions.

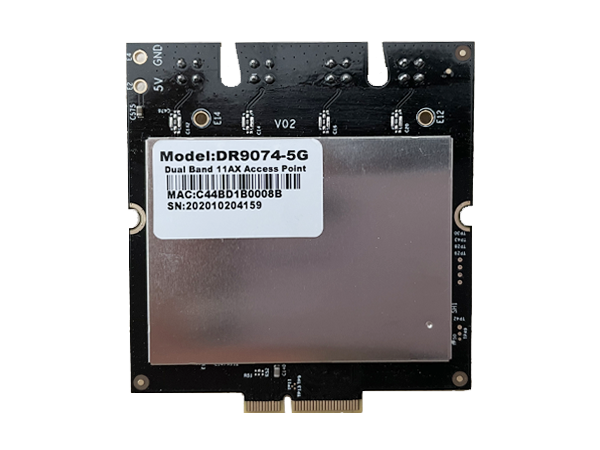

3.DR9074-5G
QCN9074,QCN9024,802.11ax,4×4,MU-MIMO,5GHz,WIFI6,M.2
This card equipped Qualcomm Atheros QCN9074,can provide 5GHz, max 23dBm per chain, up to 4949Mbps,with the interface M.2 E Key and PCI Express 3.0,with 4 spatial streams(4SS),with single band 5GHz 4×4 wifi 6 (802.11ax) functions.
4.DR9074-2.4G
QCN9074,802.11AX,4X4,2.4GHz,WIFI6,M.2
This card intergrated with Qualcomm Atheros QCN9074,can provide 2.4GHz,max 23dBm per chain, up to 1147Mbps,with the interface M.2 E Key and PCI Express 3.0,with 4 spatial streams(4SS),with single band2.4GHz 4×4 wifi 6 functions.
Wallys Communications(Suzhou) Co.,Ltd,known as a specialist in researching and developing and producing of wireless communication products,have star product as Routerboard,Network Card,Industrial Wireless AP,Antenna etc,is one of the suppliers of the Facebook.
With the professional R&D teams which possess over 15 years experience,we could not only providing OEM/ODM/JDM services,but also have the ability to supporting customization service for you.From idea design to manufacture to put the product into market.
